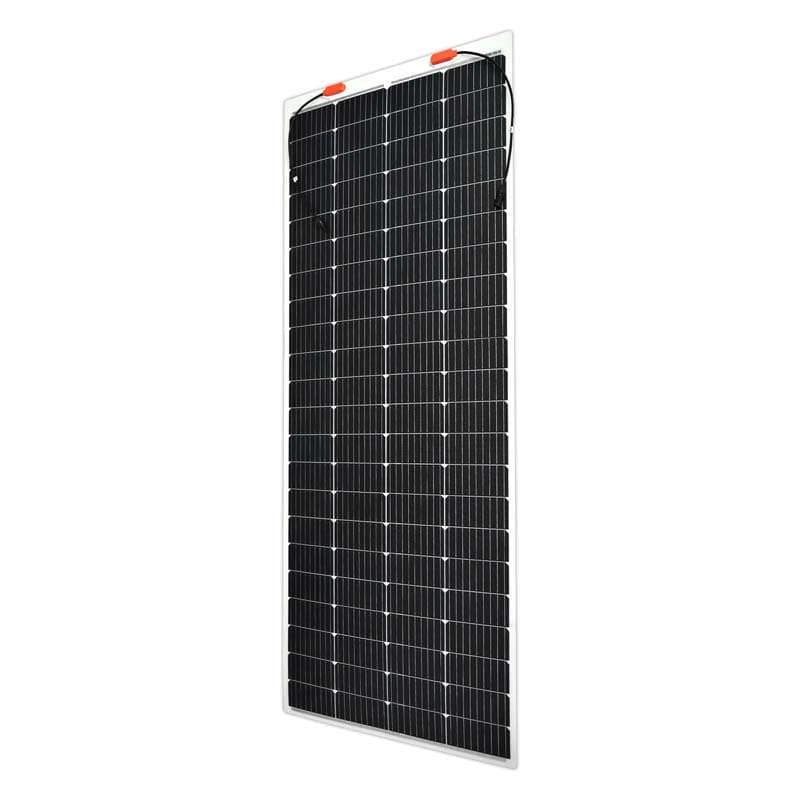

Sungold TF-M-270W Flexible Solar Panels
The TF-M-270W Flexible Solar Panels product has passed the company’s long-term trampling test, and the protection and stability of the product have been verified. It also proves that the newly added patented material has excellent protection for the solar cells and also lays a solid foundation for the 5-year warranty.
TF-M-270w flexible solar panels uses monocrystalline solar cells with a conversion efficiency of up to 23%, which is very suitable for rv life. The absorption will be enhanced and the damage to the cell will be reduced.
TF-M-270W flex solar panel has excellent flexibility, using ETFE surface material, has excellent weather resistance, salt spray resistance, corrosion resistance and aging resistance.
At the same time, the TF series flexible solar panel is compatible with more uses, such as yachts, ships, golf car roofs, lightweight roofs, color steel roofs, tents and BIPV.
The TF-M-270w flex solar panel uses the exclusive patented material of Sungold solar. This material has great improvement in weather resistance, salt spray resistance, corrosion resistance and aging resistance. The absorption of impact force will be enhanced and the damage to the battery will be reduced.
The overall weight of the TF-M-270w flexible solar panel is only 4.62 lb, which can significantly reduce the total weight of the carrier. Therefore, in the case that many other products cannot be used, TF-M-270w solar flexible panels can be used, for example, they can be hung on the wall for a long time.

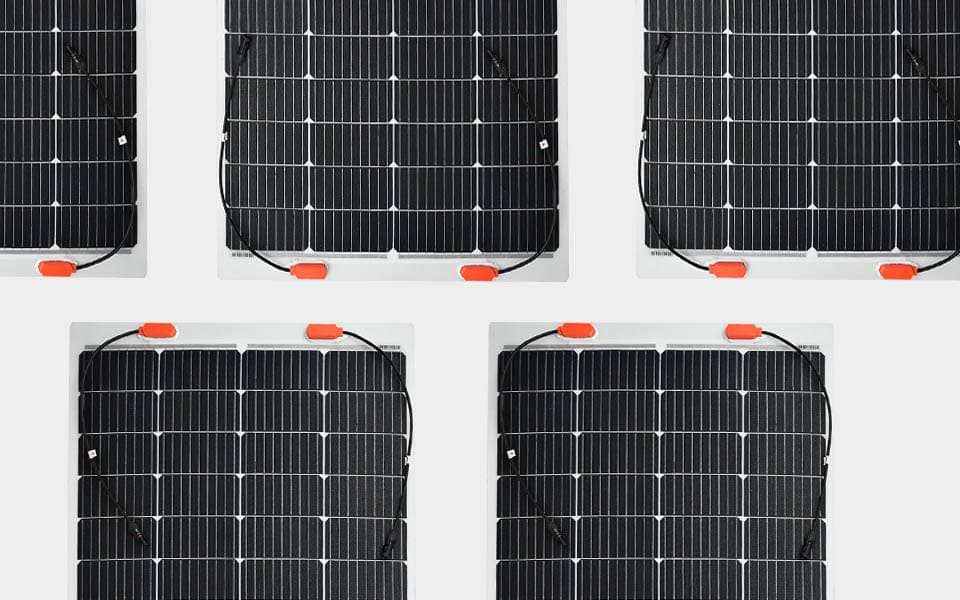

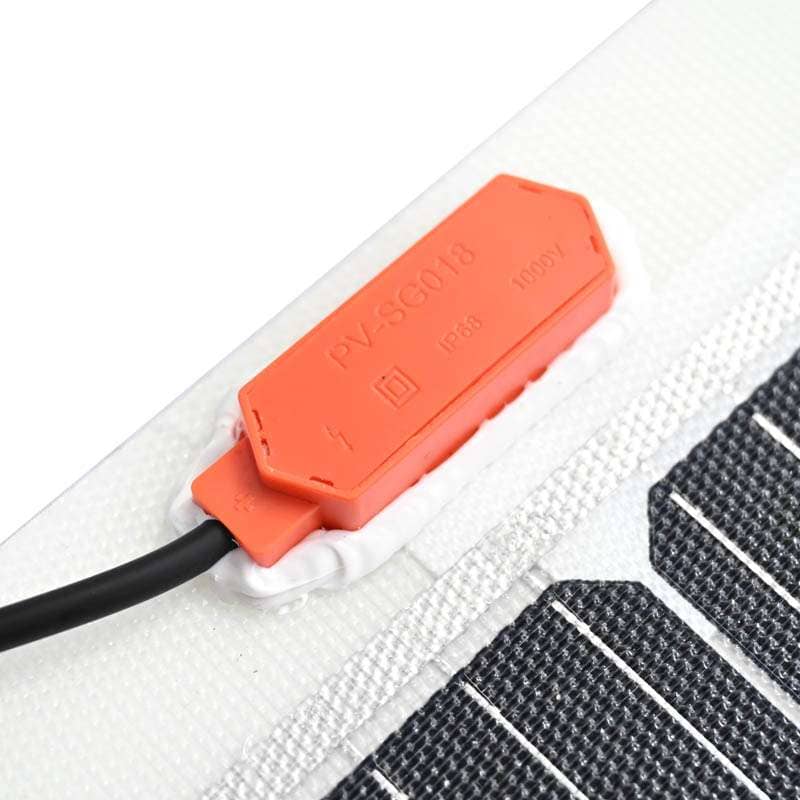

Easy to connect：TF series flexible solar panels on boat have excellent design and complete power, so there is no need to make complicated connections. MC4 is a mature and safe connecting line. With Y-shaped connecting line, multiple panels can be easily connected in series and parallel.
Easy to install: Just need backing glue to stick the solar panel on the top of the RV. Once fixed, the flexible pv solar panels will not loosen due to the movement of the RV.
TF-M-270W flexible solar panel uses the latest technology monocrystalline silicon solar cells, using multi-layer cell technology to make it the highest quality. Flexible solar panel efficiency is up to 23%. ETFE laminated outer film provides solar panels with good weather resistance, salt spray resistance, corrosion resistance, anti-aging and good light transmittance.
TF series 270W best flexible solar panels marine use monocrystalline solar cells with a conversion efficiency of up to 23%, which is very suitable for marine life.
| Maximum power(Pmax) | 270W |
| Open-circuit voltage(Voc) | 32.3V |
| Voltage at Pmax(Vmp) | 27.4V |
| Short-circuit current(Isc) | 11.21A |
| Current at Pmax(Imp) | 10.58A |
| Cells efficiency(%) | 22.60% |
| The maximum system voltage | 600V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -40~85℃ |
| Weight | 4.57kg |
| Size | 1690*890*2mm |
| Warranty | 5 years |
Yes, TF flexible solar panels are designed with patented materials for long-lasting durability. This solar panel can withstand unpredictable weather conditions.
TF series solar panel specifications are obtained in a laboratory environment (near-perfect environment for solar panels to generate electricity). There are a number of factors that may undermine the group’s performance.
Examples include humidity, air pollution, cloud cover and obstruction from the sun. There is a certain loss rate, ranging from 70%-80% of the power output
Absolutely! I also have this on my travel trailer. The DC interface output is 18V and you may need a charge controller depending on what comes with your camper.
However, I’m sure the connectors can be modified to fit your RV. Keep in mind the wattage and voltage rating of the panel and whether it will fit properly into your RV solar system DC to AC converter.
Yes, the TF series is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.
Sungold solar was established in 2008, and is a one of the leading chinese solar panel suppliers.
Sungold solar focuses on flexible solar panels wholesale business and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.
| Maximum power(Pmax) | 270W |
| Open-circuit voltage(Voc) | 32.3V |
| Voltage at Pmax(Vmp) | 27.4V |
| Short-circuit current(Isc) | 11.21A |
| Current at Pmax(Imp) | 10.58A |
| Cells efficiency(%) | 22.60% |
| The maximum system voltage | 600V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -40~85℃ |
| Weight | 4.57kg |
| Size | 1690*890*2mm |
| Warranty | 5 years |
Will the solar panel still work if it is partly cloudy or overcast?
Yes, TF flexible solar panels are designed with patented materials for long-lasting durability. This solar panel can withstand unpredictable weather conditions.
Why does your 270W panel only provide 250W output? Shouldn’t it be marketed as a 90W panel?
TF series flexible solar panel specifications are obtained in a laboratory environment (near-perfect environment for solar panels to generate electricity). There are a number of factors that may undermine the group’s performance.
Examples include humidity, air pollution, cloud cover and obstruction from the sun. There is a certain loss rate, ranging from 70%-80% of the power output.
Can this 270 watt flexible solar panels connect directly to the camper battery via an adapter?
Absolutely! I also have this on my travel trailer. The DC interface output is 18V, you may need a charge controller depending on what comes with your camper.
However, I’m sure the connector can be modified to fit your RV. Keep in mind the power rating and voltage of the panel, and whether it will properly fit your RV solar system DC to AC converter.
Can TF series flex solar panel walk on?
Yes, the TF series is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.
Why can you trust sungold solar’s solar panel products?
Sungold solar was established in 2008, and is a one of the leading chinese solar panel suppliers.
Sungold solar focuses on flexible solar panels wholesale business and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.
SUNGOLD – The solar portfolio ensures maximum flexibility to meet all your energy needs.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
