Rigid solar panel - SGSP Series
Sungold SGSP series sunpower solar panels have dependable durability and work flawlessly in real environments.
High efficiency
Long service life
Easy to install and stable outpu
Sungold SGSP series rigid solar panels
Sungold Top solar panels wholesale Suppliers for Your Renewable Energy Project
Product Description
Sungold SGSP series solar panel has a power output of more than 90% in 10 years, and a power output of more than 80% in 25 years. It has a high-efficiency output and more power output per square meter. It is suitable for off-grid environments such as RVs and boat roofs.
Beautiful design
The off-grid cables of SGSP series glass solar panels of look cleaner. The new black frame complements the high-efficiency solar cells.
Strong performance and long service life
The SGSP series sunpower solar panel advance encapsulation materials with multi-layer sheet lamination enhance battery performance and provide long service life.
ested by EL, stable output
EL Tested Solar Module. No Hot Spot Heating Guarantee. The TPT backplate ensures smooth performance over the long term.
Strong compatibility, easy to install

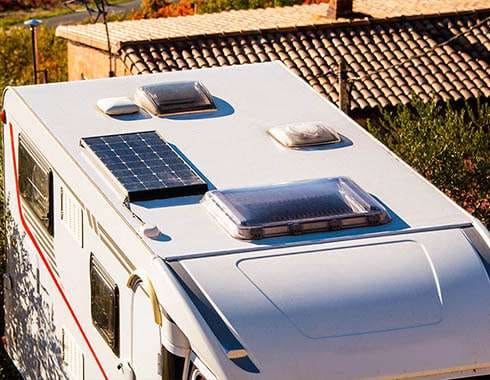

The fixed solar panels for caravans kit meets different application needs. Ground mount compatible. Compatible with grid-tied and off-grid inverters. Pre-drilled holes on the back of the panel allow for quick installation and fixing.
Product Specifications
| Model | SGSP-40W | SGSP-45W | SGSP-60W | SGSP-65W | SGSP-90W | SGSP-120W | SGSP-135W | SGSP-150W | SGSP-165W |
|---|---|---|---|---|---|---|---|---|---|
| Product |  |  |  |  |  |  |  |  |  |
| Cells efficiency | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% |
| Max Power Voltage | 19.8V | 22.3V | 19.8V | 22.3V | 22.3V | 19.8V | 19.8V | 24.8V | 27.3V |
| Max Power Current | 2.03A | 2.02A | 3.04A | 2.92A | 4.04A | 6.07A | 6.06A | 6.05A | 6.05A |
| Open Circuit Voltage | 23.3V | 26.2V | 23.3V | 26.2V | 26.2V | 23.3V | 26.2V | 29.2V | 32.1V |
| Short Circuit Current | 2.14A | 2.14A | 3.21A | 3.09A | 4.28A | 6.42A | 6.42A | 6.41A | 6.41A |
| Module dimension | 540*395*25mm | 540*440*25mm | 560*540*25mm | 625*540*25mm | 835*540*30mm | 1060*540*35mm | 1190*540*35mm | 1315*540*35mm | 1445*540*35mm |
| Solar cell | SUNPOWER cell | SUNPOWER cell | SUNPOWER cell | SUNPOWER cell | SUNPOWER cell | SUNPOWER cell | SUNPOWER cell | SUNPOWER cell | SUNPOWER cell |
| Number of Cells | 4*8 | 4*9 | 4*8 | 4*9 | 4*18 | 4*8 | 4*9 | 4*10 | 4*11 |
| Cell Dimension | 125*40.7mm | 125*40.7mm | 125*62.5mm | 125*62.5mm | 125*40.7mm | 125*125mm | 125*125mm | 125*125mm | 125*125mm |
| Weight | 2.52kg | 2.76kg | 3.41kg | 3.76kg | 5.09kg | 6.51kg | 7.24kg | 7.59kg | 8.86kg |
| The maximum system voltage | 600V DC | 600V DC | 600V DC | 600V DC | 600V DC | 1000V DC | 1000V DC | 1000V DC | 1000V DC |
| Cable | 900mm/2.5m2cable + MC4 | 900mm/2.5m2cable + MC4 | 900mm/2.5m2cable + MC4 | 900mm/2.5m2cable + MC4 | 900mm/2.5m2cable + MC4 | 900mm/4m2cable + MC4 | 900mm/4m2cable + MC4 | 900mm/4m2cable + MC4 | 900mm/4m2cable + MC4 |
| Frame | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy |
| Back sheet | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET |
| Warranty | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years |
Application
SGSP series solar panels are best suited for residential, commercial use, and large off-grid systems. It is recommended to complete large-scale projects with SGSP series solar panels, ideal for grid-connected and off-grid projects.Sungold Solar is one of the most trusted solar panels wholesale suppliers.
