foldable solar panel LVP2-180W
Foldable solar panel LVP2-180W
- Brand: Sungold
- Cells Efficiency :22.70%
- Folding Size:820*595*50mm
- Unfolding Size: 1193*820*25mm
- Warranty: 1 year
Description

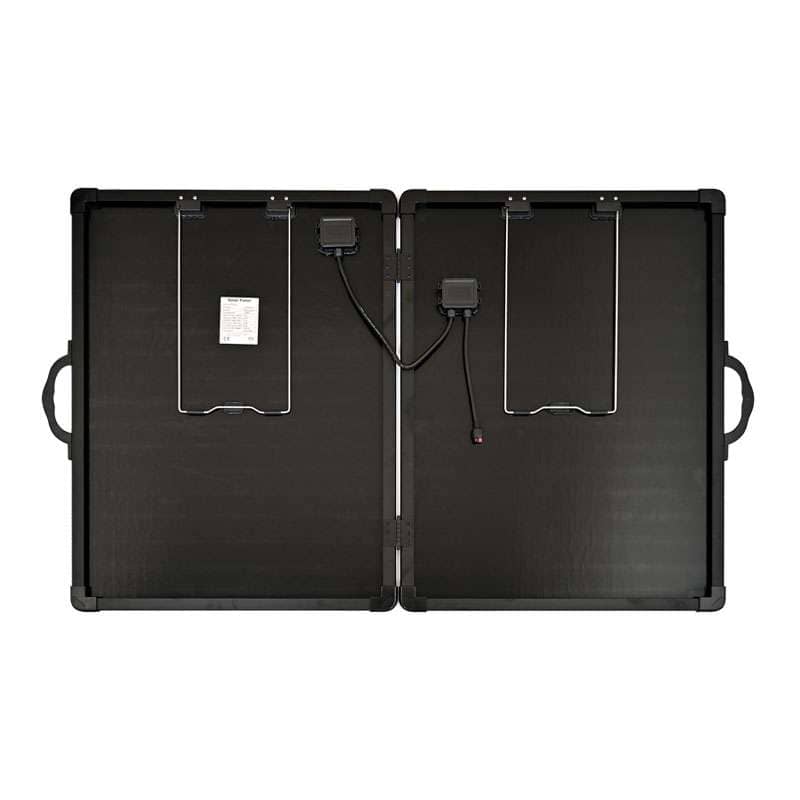

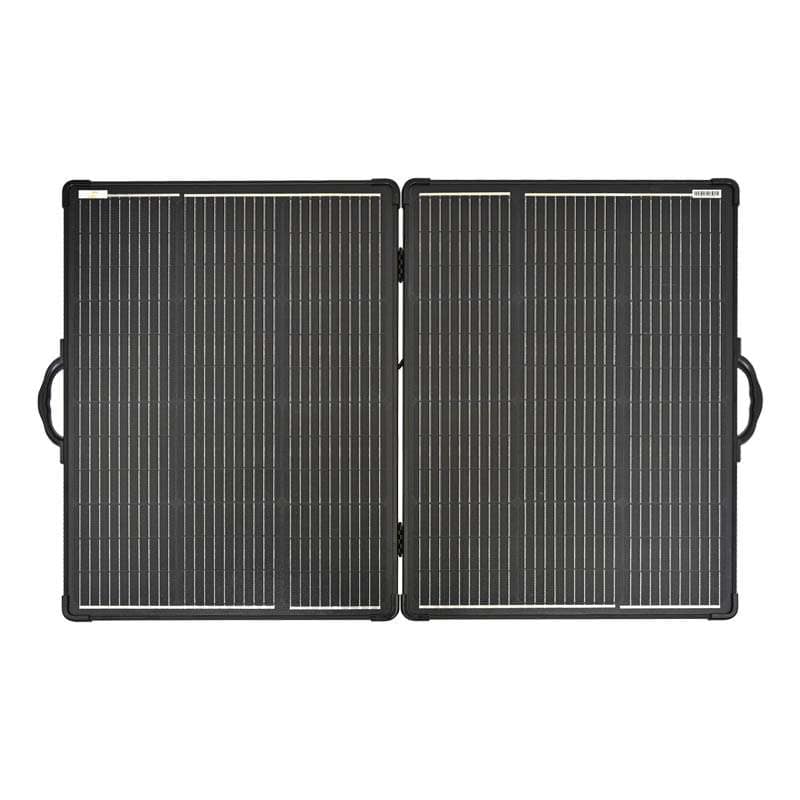

The LVP series 180W portable solar panels include two 90W monocrystalline panels, the unique design makes it easier to store or transport. There are two brackets on the back, you only need to open the solar panel, and adjust the bracket according to the angle of the sun, and you can charge and use it. It’s perfect for outdoor use, camping, RVs, and vans. Seasoned travelers will love it.
PRODUCT FEATURES
LVP2-180W Portable Solar panel
Lightweight
This lightweight solar panel is lightweight, portable, and easy to adjust to the best sun angle. You’ll find it folds up easily so it’s easy to store and set up, making it perfect for use in off-grid environments like outdoor camping and RV travel.

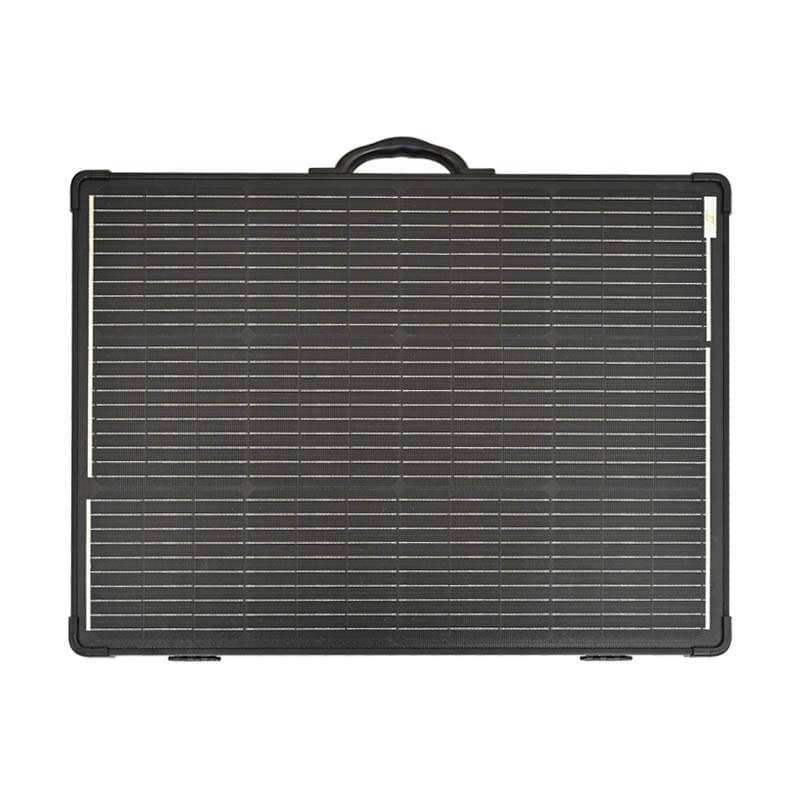

Foldable
This high-efficiency solar panel is very flexible and can be taken anywhere. It can be mounted on the roof or placed directly on the ground. It has a built-in magnet in the handle that allows the folded state to be tightly attached to the magnet.
Waterproof
The LVP-180W folding solar panel has an IP65 waterproof rating. The entire product will not be affected by rain or splashing water. You only need to wipe off the water drops from the surface. It can continue to absorb sunlight and charge you.
ETFE material
The ETFE composite outer film is highly resistant to UV aging and has good light transmission, which can extend the life of the solar panel. At the same time, ETFE material is very resistant to high temperature and corrosion, reducing the adverse effects of the external environment on the performance of solar panels.
Specifications
The surface of theLVP2- 180W foldable solar panel is covered with ETFE material, which is more durable than traditional solar panels. It has a corrosion-resistant aluminum frame, making it suitable for extended outdoor use.
| Parameter | Specification |
|---|---|
| Product | LVP2 180W A |
| Folding Number | 2pcs |
| Cell Efficiency | >22.7% |
| Max Power Voltage (V) | 20.9 |
| Max Power Current (A) | 8.62 |
| Open Circuit Voltage (V) | 24.5 |
| Short Circuit Current (A) | 9.04 |
| Number of Cells | 2*3*14 |
| Cell Dimension | 182*61.77mm |

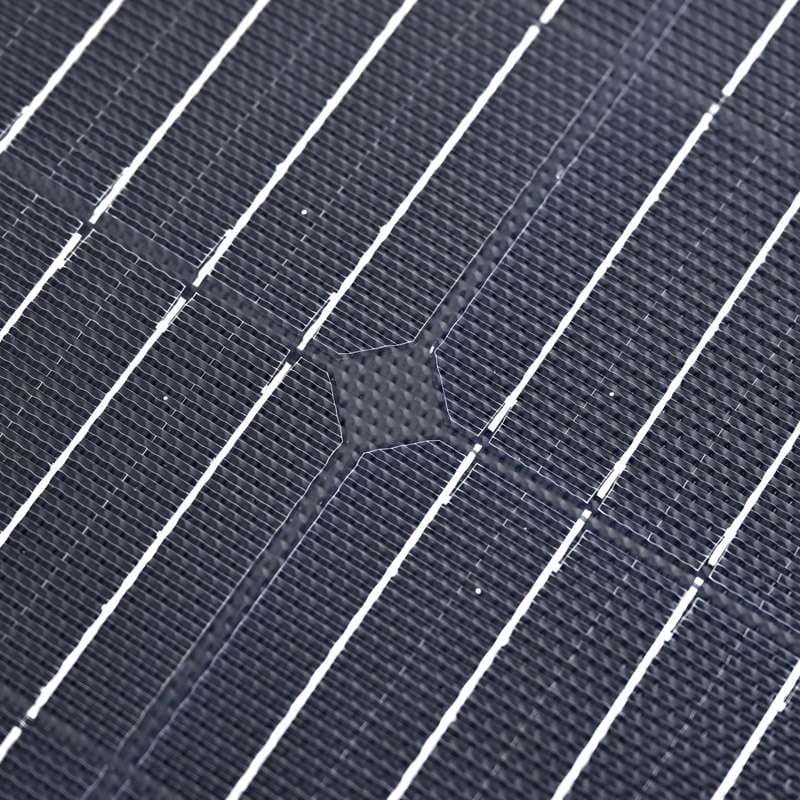

| Solar cell | mono cell 182 |
| Weight (kg) | 8.3kg |
| Expand Size | 1193*825*25mm |
| Folded Size | 825*595*50mm |
| Connector | Anderson |
| Maximum System Voltage | 100V DC(IEC) |
| Surface material | ETFE |
| Color | black |
| Warranty | 1 year |
FAQ
If you’re going RV camping, a picnic, or even an unexpected power outage. The LVP series can be used for most of your basic outdoor appliances and electronics power supply. It can also be your reliable backup power source when you need electricity in special situations.
With IP65 waterproof rating, the whole product will not affect the work of the product if it is rained or splashed by water. All you need to do is wipe off the surface water droplets.
The product has a stand on the back, you just need to open the stand and place it on any ground. With just a few seconds of setup, you can generate electricity from sunlight.
Absolutely! Anti-aging material handle, anti-corrosion metal bracket, using ETFE as the surface outer membrane.Ensure that the product has good corrosion resistance and anti-aging ability.
The wiring configuration is separate from the plug connection. We designed it in two sizes, alligator clips or small Anderson connectors. Both connectors cover all your basic usage scenarios.
A 180 Watt foldable solar panel can be used to charge 12 Volt battery. If you already have an inverter battery at home, then you need to install solar panels of double the size of battery capacity to enable uninterrupted power supply.
The foldable solar panel is very powerful and is very suitable for charging batteries and solar generators on the boat, gazebos or camping. It is weatherproof and waterproof and can therefore be permanently mounted. The 180 W foldable solar panel has a universal MC4 output.
In general, a 100Ah deep-cycle lead-acid battery would require 180 watts of solar panel to fully recharge from 50% Depth of Discharge (DOD) assuming 4.2 peak-sun-hours per day. It would take 8 hours to fully recharge with a clear sky.
Download guide
The LVP series comes in an array of sizes and form factors, with peak power 180 watts , Download our guide to 180 watt solar panels
