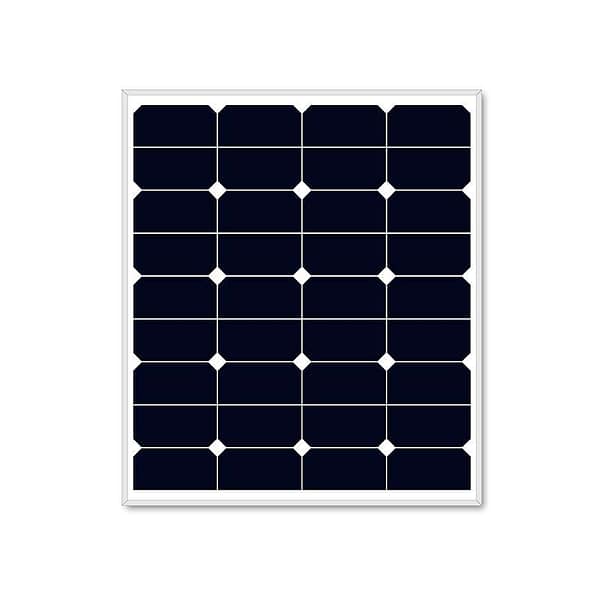

Sungold Rigid Solar Panel Roofing SGSP-90W
Power Output(W):90W
Open-circuit voltage(Voc): 26.2V
Voltage at Pmax(Vmp): 22.3V
Short-circuit current(Isc):4.28A
Current at Pmax(Imp): 4.04A
Dimensions: 835*540*30mm
Sungold l SGSP 90W Solar Panel Roofing
Off-grid lines look cleaner. New black frame compliments high-efficiency solar cells.
Bypass diodes minimize power drop caused by shade.
Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life. EL tested solar modules; no hot-spot heating . TPT back sheet ensures smooth performance over a long period of time.
Meet different needs of applications. Ground mount compatible. Compatible with on-grid and off-grid inverters. Pre-drilled holes on the back of the panel allow for fast mounting and securing.

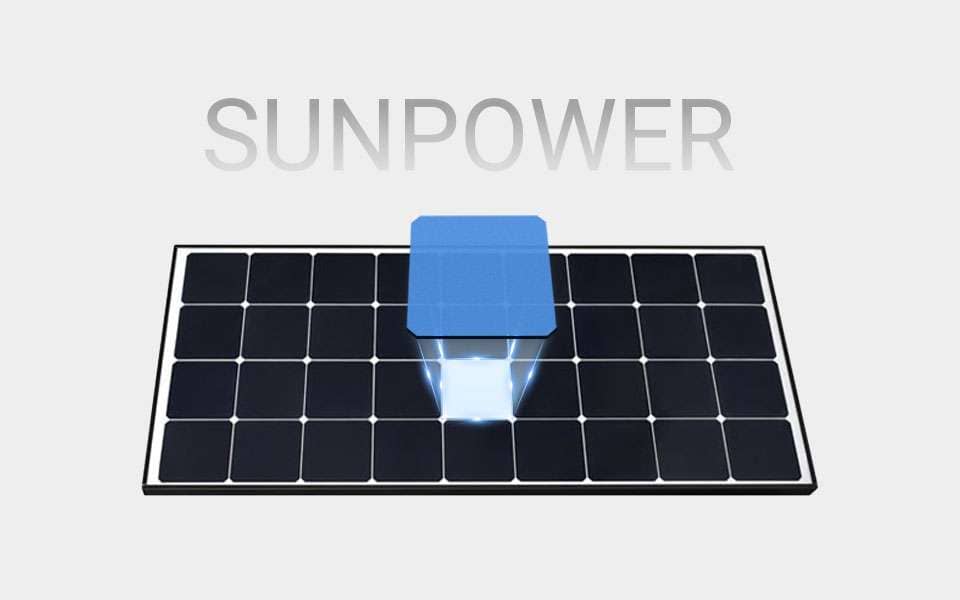

Sunpower cells are 20-30% more efficient than monocrystalline cells and have the added benefit of being extremely reliable (SunPower photovoltaic cells hold the world record for energy production). For example, sunpower photovoltaic cells have been selected to power the Solar Impulse solar aircraft.
A perfectly waterproof MC4 connector is available at the output of the solar panel to ensure the electricity connection. The sturdy aluminium frame can be drilled to secure it to the boat.
Corrosion-resistant aluminum frame allows extended outdoor use.The SGSP series 90w fixed solar panel can last for decades.
Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance. IP67 rated junction box provides complete protection against environmental particles and protection of low pressure water flow.
SGSP 90 watt solar panel kit uses the most mature product design.Classic IBC battery process used by SunPower cells. There is no grid line on the front of the cell to avoid the shading loss of the metal electrode, maximize the absorption of sunlight and maximize the conversion efficiency.The conversion efficiency is up to 24.40%.
| Maximum power(Pmax) | 90W |
| Open-circuit voltage(Voc) | 26.2V |
| Voltage at Pmax(Vmp) | 22.3V |
| Short-circuit current(Isc) | 4.28A |
| Current at Pmax(Imp) | 4.04A |
| Cells efficiency(%) | 24.40% |
| The maximum system voltage | 600V DC(IEC) |
| Power temperature coefficient | -0.27%/℃ |
| Voltage temperature coefficient | -0.236%/℃ |
| Current temperature coefficient | 0.058%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -40~85℃ |
| Weight | 5.09kg |
Dimensions | 835*540*30mm |
| Warranty | 10 years |
Conventional RV roof, off-grid roof system, traffic road peripheral products, outdoor fixed use, etc.
SGSP series rigid sunpower solar panel is one of the most mature products. Although the weight of the product is relatively heavy, the stable and the worse-saving way of use greatly reduces the after-sales worries of customers.
Yes, as long as the sun shines.
Yes, but note the amperage capacity of the controller when connecting panels and do not exceed the controller capacity.
Sungold solar is one of the leading manufacturers of solar panels in China. Sungold solar focuses on solar panels manufacturing business and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency. According to the different needs of customers, we also provide customized services.
| Maximum power(Pmax) | 90W |
| Open-circuit voltage(Voc) | 26.2V |
| Voltage at Pmax(Vmp) | 22.3V |
| Short-circuit current(Isc) | 4.28A |
| Current at Pmax(Imp) | 4.04A |
| Cells efficiency(%) | 24.40% |
| The maximum system voltage | 600V DC(IEC) |
| Power temperature coefficient | -0.27%/℃ |
| Voltage temperature coefficient | -0.236%/℃ |
| Current temperature coefficient | 0.058%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -40~85℃ |
| Weight | 5.09kg |
| Dimensions | 835*540*30mm |
| Warranty | 10 years |
1.Question:Which places are best equipped with Sungold SGSP series rigid Solar Panel Roofing?
Answer: Conventional RV roof, off-grid roof system, traffic road peripheral products, outdoor fixed use, etc.
2.Question:What is the difference between SGSP rigid solar panels and other large wattage solar panels?
Answer: SGSP series rigid solar panel is one of the most mature products. Although the weight of the product is relatively heavy, it is stable and the worse-saving way of use greatly reduces the after-sales worries of customers.
3.Question:Could I set this in a sunny window, instead of on the roof?
Answer: Yes, as long as the sun shines.
4.Question:Can you wire two units together to increase the output watts capacity?
Answer: Yes, but note the amperage capacity of the controller when connecting panels and do not exceed the controller capacity.
5.Question:Why can you trust Sungold Solar’s solar panel products?
Answer: Sungold solar is one of the leading solar pv modules manufacturers in China. Sungold solar focuses on manufacturing solar panels and keeps innovating processes.
The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency. According to the different needs of customers, we also provide customized services.
SUNGOLD – The solar portfolio ensures maximum flexibility to meet all your energy needs.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
